Automatic loading and unloading panel furniture production line
Features

This machine is: automatic loading and unloading straight row automatic tool change machining center.

Features are as follows:
Self-contained pusher device, which automatically pushes the plate from the processing table after processing, which is convenient for the operator to take the material, saves the time of idle work, and has high efficiency.

Realize optimized layout, save plates, and improve production efficiency.
Vacuum adsorption table, can process different shapes of plates.

It can simultaneously complete automatic feeding, vertical punching, rectangular cutting, special-shaped cutting, troughing, automatic unloading, and the operation is simple.

Parameters
Product name and model Automatic loading and unloading ATC1530
machine color black
Three-axis travel 1500*3000*200mm
system new generation
Chassis Voltage/Frequency 220V, 3phase, 60HZ
Spindle power/speed Italian HSD ES951
Inverter Delta inverter
Motors and Drives Yaskawa Servo
reducer japan new treasure
bed structure large square tube
countertop structure Full page adsorption
side panel type column side panel
guide PMI #30
Rack/Module J&T helical tooth 1.5M
Limited brand Omron
Lubrication system Electric gear pump
Vacuum pump (voltage and frequency) Double-stage vortex pump (220V, 3phase, 60HZ)
Vacuum cleaner (voltage and frequency) New double bag, (220V, 3phase, 60HZ)
positioning cylinder have
knife automatic tool setting
Chassis (type, color) Rittal large chassis
Images

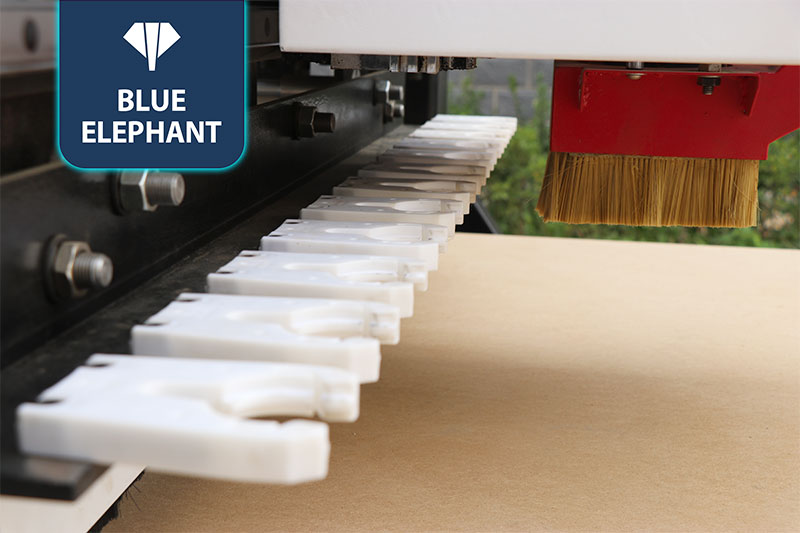

cnc router

cnc router

cnc router
